Bobinador de películas

¿Qué sería de las complejas películas sin la tecnología de bobinado adecuada? Desde hace más de 70 años, la filial de Alpine HOSOKAWA KOLB desarrolla soluciones para el bobinado perfecto de rollos de películas.

Experiencia de más de 2500 bobinadoras producidas
Estrecha colaboración con expertos en extrusión de películas sopladas
Bobinadoras óptimamente adaptadas a todos los tipos de película

Series

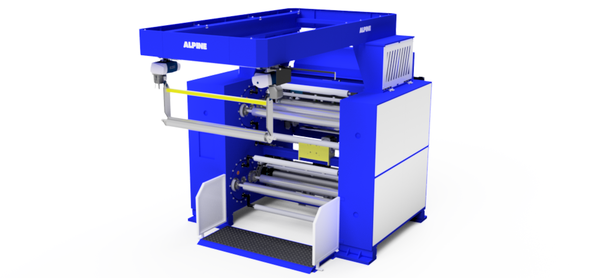

The Space Saver: series ATW

Extremely compact special winder for highest quality requirements. The turret winder enables adhesive-free winding and reverse winding in the smallest space.

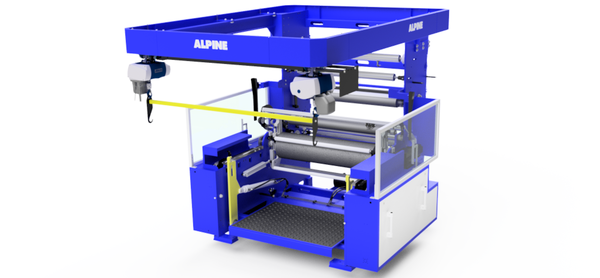

The Work Horse: series 10/10Z

For a wide range of film products with roll widths up to 2,000 mm. Also available with central drive (version Z).

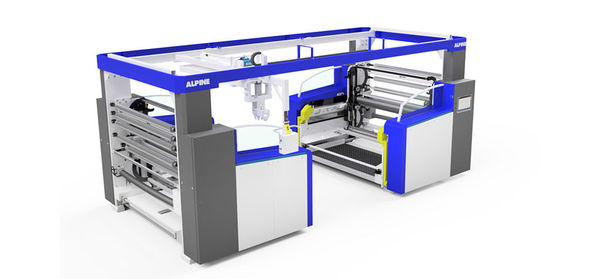

The Specialist: HW series

Winding Without Prewinding Station- Highest winding precision from the first meter.

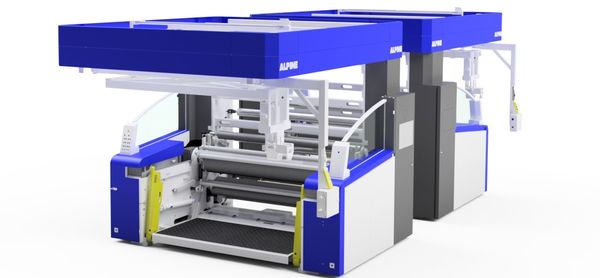

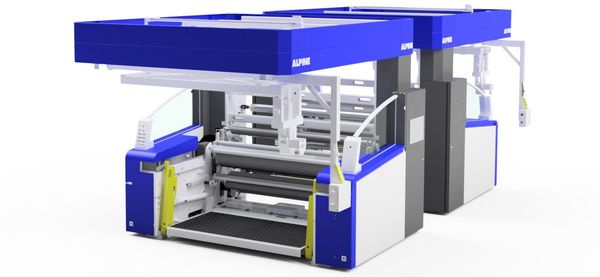

The Allrounder: series AW

For highest roll quality with all technical possibilities. Suitable for right- and left-side winding.

Features

Designed for high speeds
Face-to-face or back-to-back configuration possible
effective avoidance of air inclusions
optimal winding hardness adjustment
perfect appearance and flatness
all winders available as WS (single) or WD (double)
Excellent further processing of the rolls
Integration of pre take-off and take-off possible

Winding systems

Contact winder

The simplest winding principle is usually used for monofilm made of HDPE or LLPE/LDPE for simple bags or waste bags. The method is also particularly suitable for blunt films.

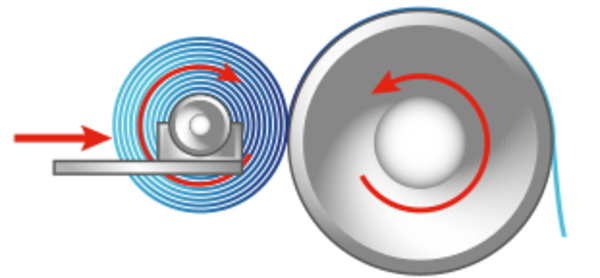

Central winder

The most universal winding system is suitable for both simple and complex film structures. In addition to the contact winder, the film roll is driven in a controlled manner.

Gap winder

The gap winding is a special form of central winding. Typical applications: strongly sticky films (e.g. high AVA content or ionomer on the outer layer), blunt or strongly shrinking films.

Manufactured by HOSOKAWA KOLB GmbH
