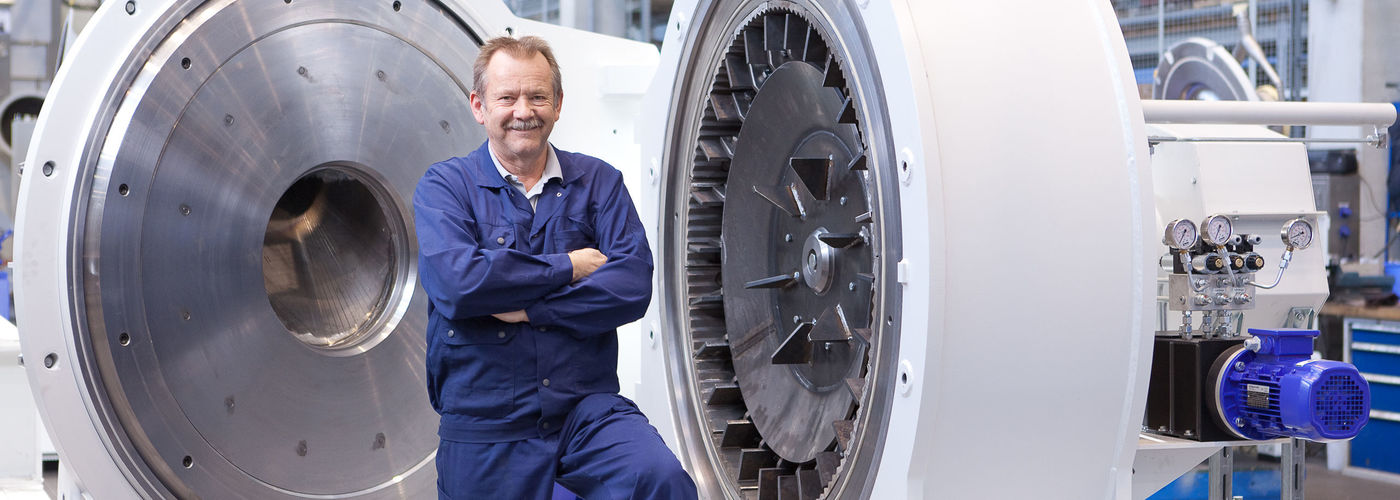

Hombre frente a la UPZ
Ultraplex UPZ
Imagen de las máquinas Ultraplex UPZ 315
Ultraplex UPZ
Imagen de las máquinas Ultraplex UPZ 315

Ultraplex UPZ

Sistema de trituración versátil:

  • Herramientas de molienda intercambiables: discos de impacto, disco de pines, batidor pendular, disco batidor, cribas y pistas de molienda
  • Finura en el rango de entre 50 µm y 5 mm aproximadamente según el equipamiento de las herramientas de trituración
  • Trituración de materiales blandos hasta una dureza de Mohs de 3,5
  • Fácil limpieza gracias a la puerta del molino, abatible en un ángulo amplio, y al cambio de las herramientas de trituración

Principle of operation

Alpine Ultraplex UPZ fine impact mills offer versatility in use combined with simplicity in operation. Because of the wide variety of feed materials, where every comminution task demands its own tailor-made solution, the UPZ mills can be equipped with a variety of easily interchangeable milling elements. Tough-fibrous roots and spices, for example, require completely different milling elements to granulated sugar in order to optimally fulfil the individual requirements, both in technical and economic terms.

UPZ mills can be equipped as a pin mill without sieve with one rotating and one stationary pin disc. Or as a beater mill with beater disc, swing or plate beater unit for operation with grinding tracks or sieves.

The overall result is a host of practice-oriented and perfectly coordinated equipment combinations. In short, the UPZ mill can be tailored to match every customer's individual requirements.


UPZ fine impact mills can be equipped with a host of different milling elements, thus fulfilling a great variety of demands on the end product, for example:

  • High fineness with sharp top cut
  • Production of end products that are low in fines with good flow properties
  • Production of powders with a high bulk density
  • Production of powders with a high mass fraction within a defined particle size range

The interchangeability of the milling elements is becoming increasingly important for the user.

The UPZ offers the right milling element for every job:

UPZ beater disc unit

  • Beater cams made of wearproof cast steel
  • Rotating milling ring on housing side, stationary milling ring on door side
  • Suitable for milling compact, coarse lumps of material in one step to medium fineness

UPZ swing beater unit

  • Heavy-duty beaters made of wearproof cast metal
  • To order, also available with hardfacing
  • Universal in operation for coarse feed material
  • For medium end-product fineness values

UPZ plate beater unit

  • Powerful, wear-resistant beater plates
  • High air flow for cool milling of heat-sensitive and greasy materials
  • Achieves extremely high powder fineness values; comparable with the pin mill

UPZ pin disc unit

  • Pin mill with one rotating and one stationary pin disc
  • Suitable for materials up to a Mohs' hardness of 3, max. 0.1% permissible fraction of abrasive components
  • Extremely high end-product fineness values
  • Low energy consumption

  • Cast housing with standard discharge available up to machine size 1000 UPZ
  • Welded housing with either standard or tangential discharge in mild steel or stainless steel (e.g. 1.4541, 1.4571, 1.4404) for all machine sizes
  • Explosion-pressure-shock-proof design
  • Application-specific pharma designs, i.e. polished, monobloc, SIP/CIP, isolator integration
  • Connection flange order-specific
  • Bearing unit protected against dust by rinsing air (automatic air intake or forced rinsing)
  • Bearing unit with special sealing rings, gas-tight design also possible
  • Bearing unit permanently lubricated or designed for relubrication
  • Safety interlock
  • Optional wear-protection elements
  • Grinding track ejector optional
